Replace element property

QElectroTech provides the feature of automatic searching of element with an specific property for replacing element properties without the need of searching the element manually around the project.

Note

If the search menu is not displayed, it can be displayed from Edit > Search / Replace menu item.

To replace some element properties:

1. Search the property (Manufacturer, Label, etc.) which identifies the element from which a property has to be changed.

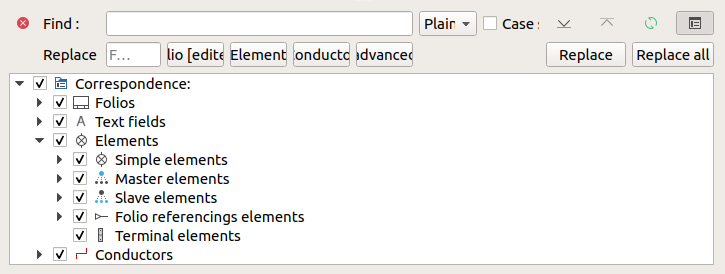

Figure: QElectroTech search menu

2. Press the Element button to display the element properties PopUp window.

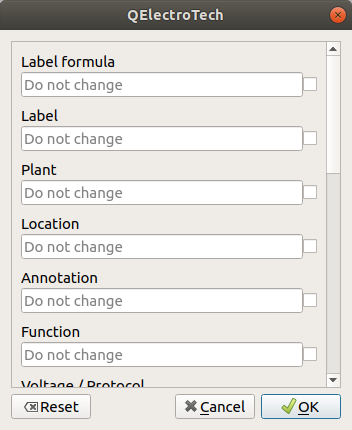

Figure: QElectroTech element properties replace PopUp windows

3. Fill the text line box from the element properties which should be changed.

   Note

   QElectroTech also allows deleting and making empty a filled property. Click the checkbox button located right from the text which should be deleted

4. Press Accept.

5. From the elements found at the search process, select the elements where the replace action have to be applied. The selection can be made at the object tree from the search menu.

6. Press Replace all button to apply the replace action to all selected elements.

Note

Replacing action can also be applied element by element. The button Replace will only apply the action to the displayed element at the workspace. The buttons and can be used to display the previous and next element from the search result.
