Reset conductors

QElectroTech provides the possibility to return to the default route of a modified conductor.

../../../_images/qet_conductor_reset.png

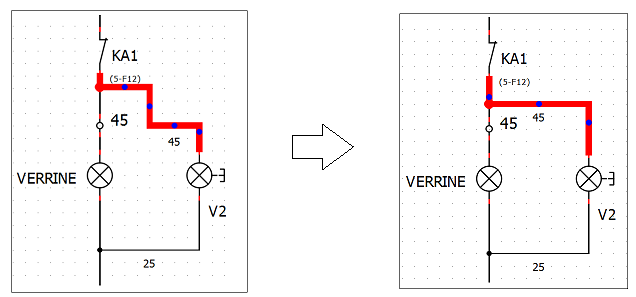

Figure: QElectroTech reset conductor

QElectroTech allows resetting the route of a conductor from menu bar, toolbar, workspace or using keyboard shortcut.

Reset conductor from menu bar

  1. Select the conductor which route should be reset.

  2. Select Edit > Reset conductors menu item to reset the conductor route.

../../../_images/qet_menu_edit_conductor.png

Figure: QElectroTech edit menu

Reset conductor from toolbar

  1. Select the conductor which route should be reset.

  2. Select the icon conductor2 from toolbar to reset the conductor route.

Note

If the toolbar is not displayed, it can be displayed from Settings > Display > Tools.

Reset conductor from workspace

  1. Right click on the conductor which route should be reset.

  2. Select the option Reset conductors to reset the conductor route.

../../../_images/qet_conductor_right_click.png

Figure: QElectroTech conductor options

Reset conductor using keyboard shortcut

QElectroTech allows using keyboard shortcut to increase the working efficiency.

  1. Select the conductor which route should be reset.

  2. Press Ctrl + k to reset the conductor route.

See also

For more information about QElectroTech keyboard shortcut, refer to menu bar section.
