Select multiple parts

As many CAD tools, many parts (Line, Rectangle, Ellipse, Arc, Polygon, Terminal, text and dynamic text field) from workspace can be selected at the same time.

Select multiple objects using keyboard and mouse

QElectroTech allows selecting multiple parts from the workspace combining the use of the keyboard and mouse.

1. Select the first part.

2. Press Ctrl.

3. Select the rest of parts without releasing Ctrl.

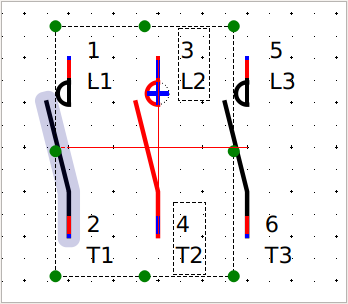

Figure: QElectroTech schema

Select multiple objects by selecting area

QElectroTech allows selecting all parts from a defined area using the mouse.

1. Left click on the initial point from the rectangular area to be selected and displace the mouse without releasing the button.

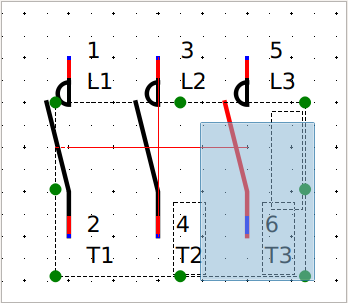

Figure: QElectroTech selecting on workspace
