Replace conductor property

QElectroTech provides the feature of automatic searching of conductor with an specific property for replacing conductor properties without the need of searching the conductor manually around the project.

Note

If the search menu is not displayed, it can be displayed from Edit > Search / Replace menu item.

To replace some conductor properties:

1. Search the property (Manufacturer, Label, etc.) which identifies the conductor from which a property has to be changed.

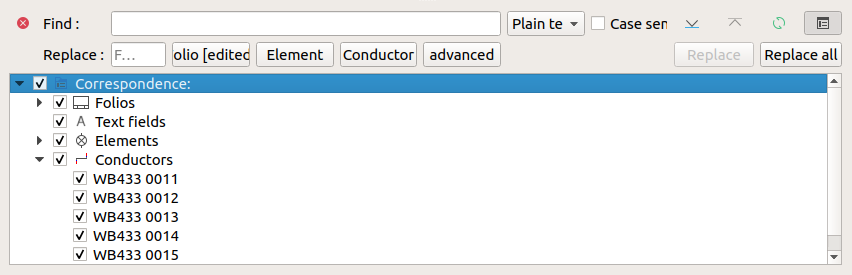

Figure: QElectroTech search menu

2. Press the Conductor button to display the conductor properties PopUp window.

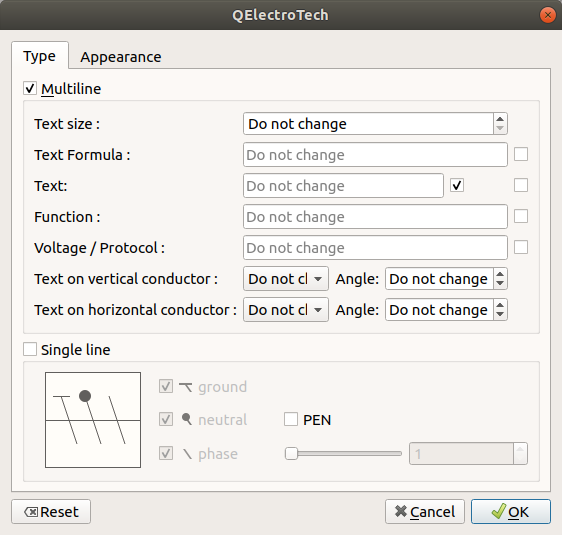

Figure: QElectroTech conductor properties replace PopUp windows

3. Fill the text line box from the conductor properties which should be changed.

Note

QElectroTech also allows deleting and making empty a filled property. Click the checkbox button located right from the text which should be deleted.

4. Press Accept.

5. From the conductors found at the search process, select the conductors where the replace action have to be applied. The selection can be made at the object tree from the search menu.

6. Press Replace all button to apply the replace action to all selected conductors.

Note

Replacing action can also be applied conductor by conductor. The button Replace will only apply the action to the displayed conductor at the workspace. The buttons and can be used to display the previous and next conductor from the search result.
