Multiple paste

For making the schema creation more efficient, QElectroTech provides the feature multiple paste. This feature allows copying and pasting one or more objects automating some object definition actions.

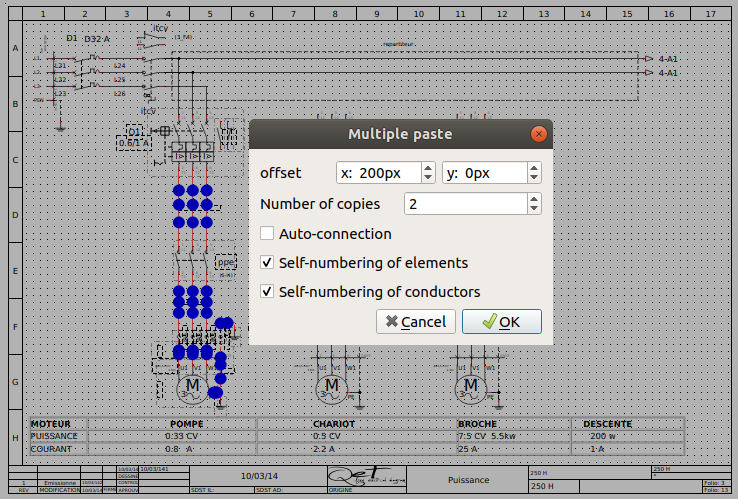

Figure: QElectroTech multiple paste

As a difference to the standard copy and paste feature, the multiple paste feature provides the following options:

• Copy and paste an object (element, conductor, text field, etc.) multiple times in one action.

• Use QElectroTech auto-connection feature for element terminals which are at the same horizontal or vertical line.

• Self-numbering of the copied element/s, the standard copy feature does not allow using auto-numbering patterns.

• Self-numbering of the copied/created conductor/s, the standard copy feature does not allow using auto-numbering patterns.

To copy and paste multiple times one or more object:

1. Select the object/s which should be copied.

2. Right click on the selected object/s.

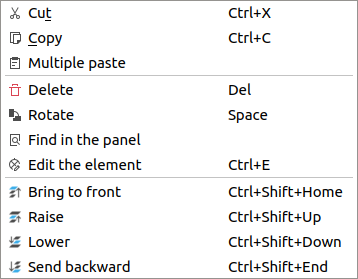

Figure: QElectroTech element right click PopUP window

3. Select the option Multiple paste to display the multiple paste PopUP window.

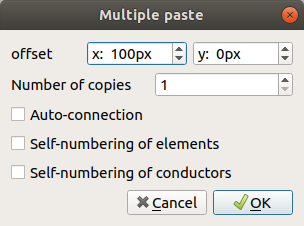

Figure: QElectroTech multiple paste PopUP window

4. Define the X and Y offset between original and copy/copies.

5. Define the number of copies desired.

6. Click the desired options about auto-connection, self-numbering of elements and self-numbering of conductors.

7. Press OK Button to close the multiple paste PopUP window and create the copies.
