Drawing area¶

The drawing area or workspace, is the area where the graphical representation of the elements is created.

The drawing area or workspace looks as follow:

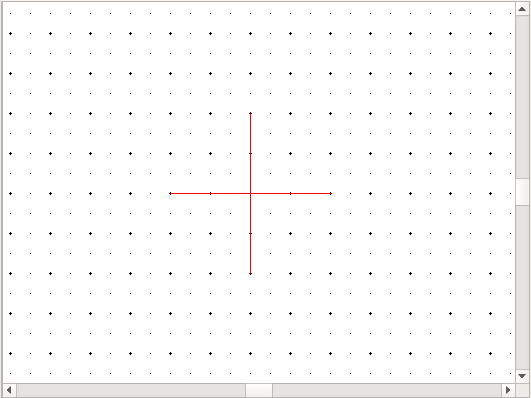

../../../../_images/qet_element_editor_workspace.png — Figure: QElectroTech element editor workspace¶

The scrollbar are not appearing at first when the element editor is displayed. Rolling the wheel from the mouse to zoom will make the scrollbar appear.
